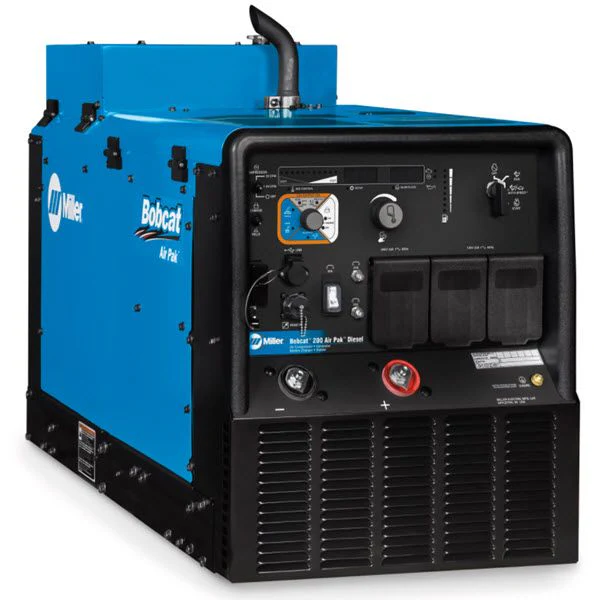

Miller Bobcat 200 Air Pak Diesel 907760
The Miller Bobcat 200 Air Pak Diesel combines a 210-amp multi-process welder, a 6,500-watt AC generator and a 30 cfm rotary-screw air compressor in one machine. A 19 HP three-cylinder Kubota diesel engine powers the compressor and welding output, including at idle. The compressor delivers 30 cfm at 80 to 175 psig, enough for most air tools including 3/4-inch and 1-inch impact wrenches, with no air tank.
It welds stick and MIG up to 210 amps, provides 100 amps of DC battery charging for 12V and 24V systems, and offers up to 300 amps of crank assist. Backed by the Miller 3-year True Blue warranty and a 3-year Kubota engine warranty.
Specifications
- Air compressor: 30 cfm at 175 psi, 100% duty cycle
- Generator: 6,500 W continuous, 8,000 W peak
- Battery charging: 12/24 V, 100 A
- Crank assist: 12/24 V, 300 A
- DC stick output: 30 to 210 A
- MIG/flux-cored output: 15 to 26 V
Applications
Maintenance
Repair
Farm and ranch
Features:
- Air compressor: on-demand air with no tank wait, 20 cfm at idle and 30 cfm at full speed
- Generator power: two 120V duplex outlets and one 120/240V outlet at 60 Hz for tools, lights, plasma cutters and TIG welders
- Battery charge/crank assist for weak batteries on jobsite equipment
- Multi-process welding: 210A output (100A at idle) with a stable inverter-based arc
- Auto-Speed adjusts engine speed to demand, reducing fuel use, maintenance and noise
- Built and tested to ANSI and CSA standards for heat, rain, salt, dust, impact and vibration
- Up to 500 lb lighter than comparable setups, with up to 24 cubic feet more payload space
- Can cut truck engine idle time by up to 75%
- Durable, environment-resistant enclosure
PLUS get a FREE 500 ft. reel of 2/0 neoprene jacketed welding cable while supplies last. Kalas ToughFlex cable is foot-marked, oil- and chemical-resistant, cold-weather flexible, RoHS compliant and UL Listed.
