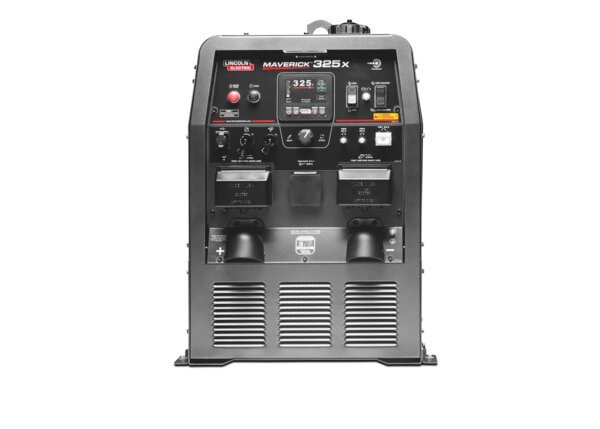

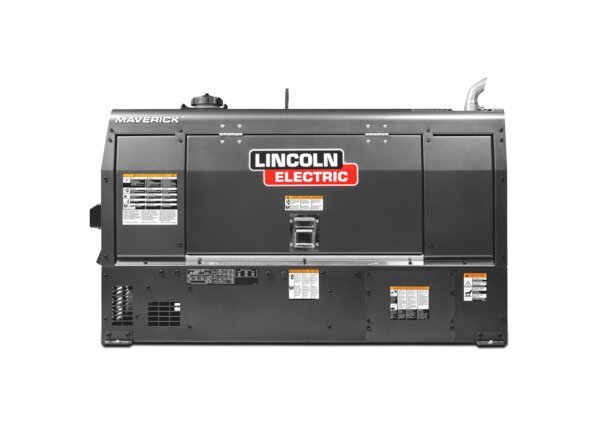

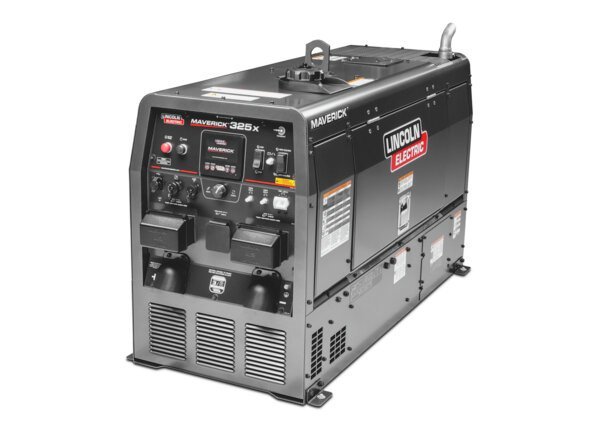

Lincoln® Maverick® 325X (Kubota®) Diesel Engine Welder K3581-1
The Lincoln® Maverick® 325X (Kubota®) is a compact 400 amp, multi-process diesel engine welder that features state-of-the-art CrossLinc® technology. Built-in CrossLinc circuitry means that the Maverick 325X communicates with a Lincoln CrossLinc wire feeder or CrossLinc remote control directly through your welding leads. Full remote amperage and voltage control is achieved without the use of a separate remote-control cable. This completely eliminates the need to go back to the welding machine to make output amperage or voltage adjustments. Other advanced features include 4.6-inch digital user interface, specialized stick welding modes and direct-connect spool gun circuitry with pulsed MIG welding capabilities. Best-in-class arc characteristics provide outstanding welding results, time after time.
The Maverick 325X produces up to 11,500 peak watts, and 10,000 continuous watts of single-phase AC auxiliary power. The Kubota® D902 three-cylinder, naturally aspirated diesel engine produces 24.8 horsepower at 3,600 RPM and is Tier 4 Final compliant. Variable RPM technology automatically adjusts engines speed based on the output load. This lowers fuel consumption and reduces noise. Auto Start/Stop feature saves fuel by shutting the engine down after a programmable period of welding inactivity. The engine automatically re-starts when the machine senses you are ready to strike a welding arc.
Processes
- Stick (SMAW)
- MIG (GMAW)
- Flux-cored (FCAW)
- DC TIG (GTAW)
- Air carbon arc (CAC-A) Rated: 1/4-inch (6.5 mm) carbons
Applications
Maintenance & Repair
Pipeline
Power Generation
Structural
